石英晶体谐振器是利用石英晶体的压电效应制造的无源频率元器件,在电路中与IC等元件搭配产生电路的基准频率。HCI可以提供各种封装尺寸及各种频点和精度的产品,广泛应用于通讯、工控、IT、医疗、精密仪器及军工等领域。

Product Photo

HCI PN

Package[mm]

Nominal Frequency

Tolerances (@+25°C)

Operating temperature

Environmental Compliance

SPEC FILE

    1. X49ST2
    2. X49ST2
    3. HC-49/S (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. X49ST3
    2. X49ST3
    3. HC-49/S (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. X49SS2
    2. X49SS2
    3. HC-49/SMD (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. X49UT2
    2. X49UT2
    3. HC-49/U (11 x 13.5)
    4. 1.8432MHz ~ 100MHz
      3rd OT — 35.0 to 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XUM5T2
    2. XUM5T2
    3. UM-5 (8 x 5.8)
    4. 1.8432MHz ~ 100MHz
      3rd OT — 35.0 to 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XUM1T2
    2. XUM1T2
    3. UM-1 (8 x 8)
    4. 12MHz ~ 35MHz
      3rd OVERTONE
      40MHz ~ 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC10M4
    2. XC10M4
    3. 1.2 x 1.0
    4. 26MHz-96MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC11M4
    2. XC11M4
    3. 1.6 x 1.2
    4. 24MHz ~ 60MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC21M4
    2. XC21M4
    3. 2.0 x 1.6
    4. 16MHz ~ 60MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +105
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC22M4
    2. XC22M4
    3. 2.5 x 2.0
    4. 12MHz ~ 60MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC32M4
    2. XC32M4
    3. 3.2 x 2.5
    4. 11MHz ~ 60MHz
      3rd OVERTONE
      54MHz ~ 100MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃~85℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC53M4
    2. XC53M4
    3. 5.0 x 3.2(4pads)
    4. 8MHz ~ 55MHz
      3rd OVERTONE
      30MHz ~ 48MHz
      48MHz~150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃~85℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC63M4
    2. XC63M4
    3. 6.0 x 3.5
    4. 8MHz ~ 60MHz
      3rd OVERTONE
      30MHz ~ 48MHz
      48MHz~150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±15ppm /-30℃~85℃
      ±30ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC75M4
    2. XC75M4
    3. 7.0 x 5.0
    4. 6MHz ~ 60MHz
      24MHz~40MHz
      3rd OVERTONE
      40MHz~150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±15ppm /-30℃~85℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC53M2
    2. XC53M2
    3. 5.0 x 3.2(2pads)
    4. 8MHz ~ 55MHz
      3rd OVERTONE
      30MHz ~ 48MHz
      48MHz~150MHz
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃~85℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance monitored.
    1. XC53G2
    2. XC53G2
    3. 5.0 x 3.2(GLASS 2PINS)
    4. 8MHz ~ 50MHz*
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃~ +70℃
      ±15ppm /-30℃~85℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ RoHS compliant by exemption
      ▪ HALOGEN-FREE
    1. XC63G2
    2. XC63G2
    3. 6.0 x 3.5(GLASS 2PINS)
    4. 8MHz ~ 50MHz*
    5. ±10 to±50ppm(others available as well)
    6. ±10ppm /-20℃ ~ +70℃
      ±15ppm /-30℃~85℃
      ±20ppm /-40℃~85℃
      *Please contact us about up to +125
    7. ▪ RoHS compliant by exemption
      ▪ HALOGEN-FREE

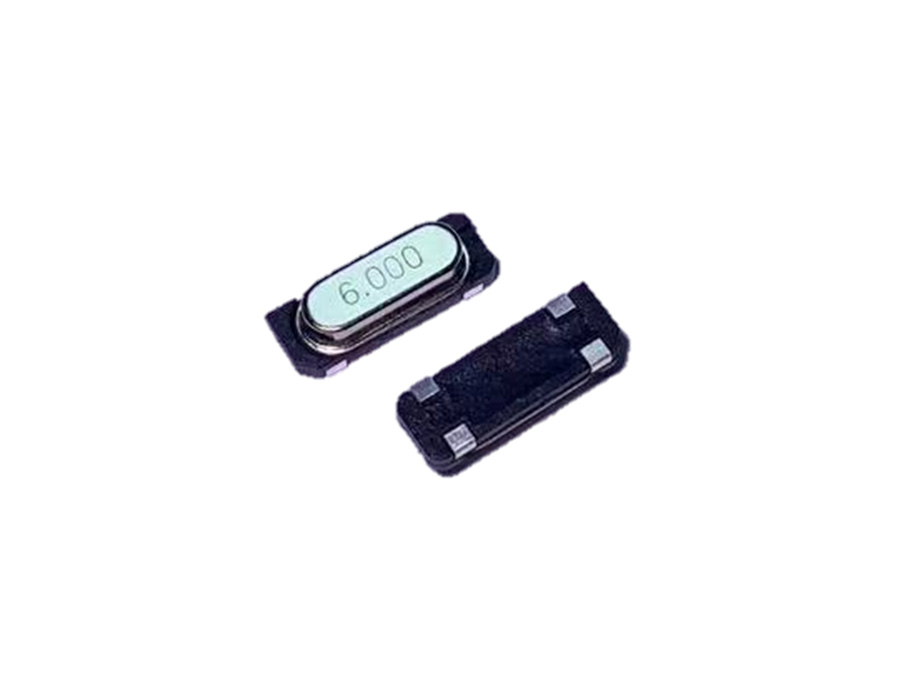

    1. X49SS3
    2. X49SS3
    3. HC-49/SMD (11.0 x 4.6)
    4. 3MHz~80MHz
    5. ±10 to±50 ppm(others available as well)
    6. ±10ppm /-20 ~ +70℃
      ±30ppm /-40~85℃
      *Specify from the specifications.
      Please contact us for requirements not listed in this specification.
    7. ▪ Fully RoHS compliant
      ▪ LEAD-FREE
      ▪ HALOGEN-FREE
      ▪ REACH compliance up to SVHCs 201 verfied, contineously monitored.
      ▪ Parts do not contain Phthalates or PVC
      ▪ Parts do not contain PFOS/PFOA
